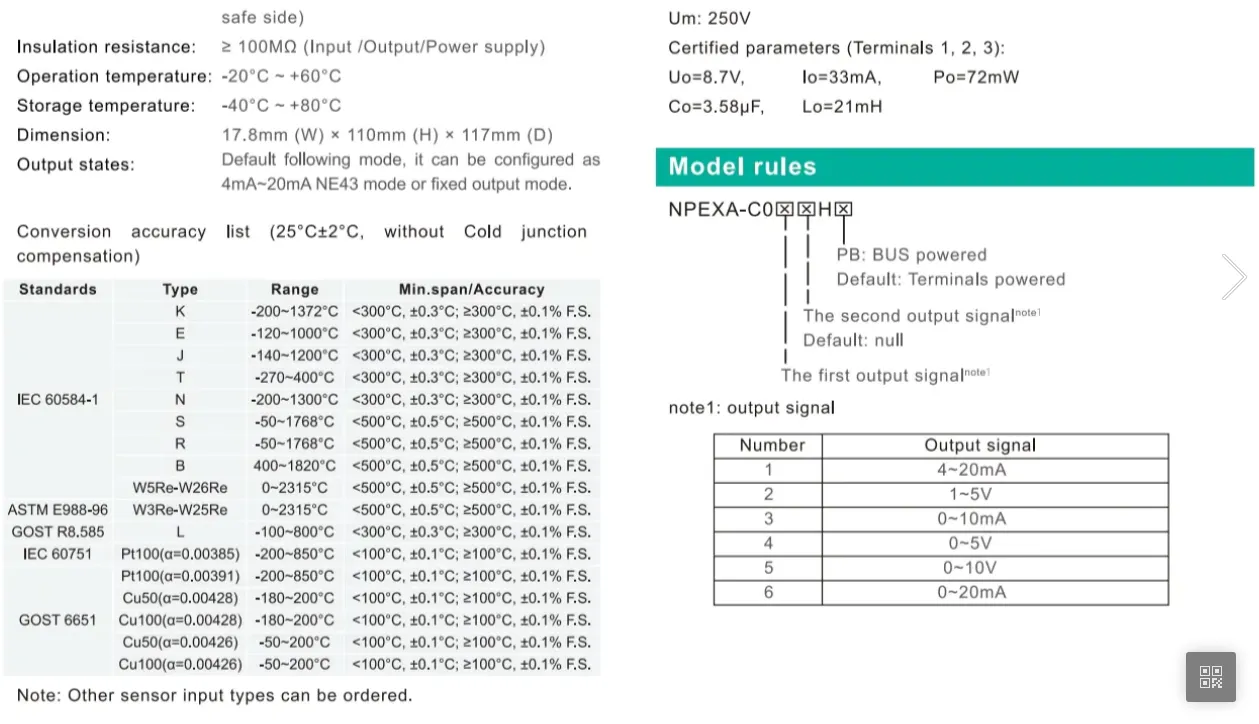

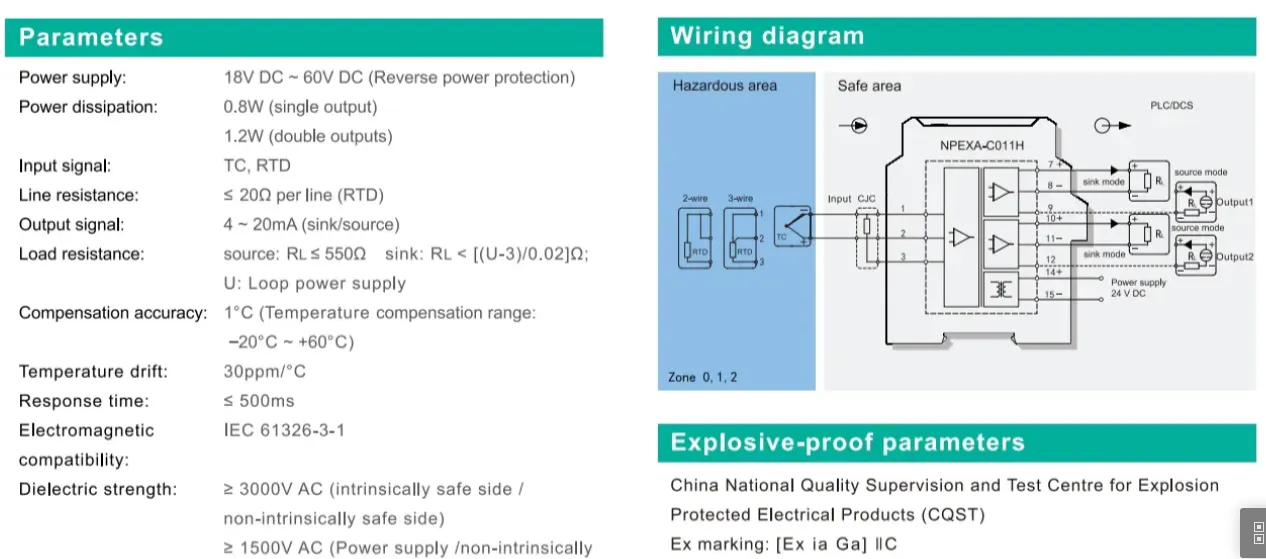

NEWPWR Isolated Barrier TC&RTD NPEXA-C011H
NEWPWR Isolated Barrier TC&RTD NPEXA-C011H
Temperature input isolated barrier，it converts the thermocouple or thermal resistance signals from a hazardous area into 4~20mA signals to a safe area by isolation, it has external cold junction compensation terminals.It needs an independent power supply.The input ,output, and power supply are galvanically isolated from each other.The self-test function is also available on this device.Calibrate the apparatus or modify paremeters by using a handheld programmer.
Temperature input isolated barrier，it converts the thermocouple or thermal resistance signals from a hazardous area into 4~20mA signals to a safe area by isolation, it has external cold junction compensation terminals.It needs an independent power supply.The input ,output, and power supply are galvanically isolated from each other.The self-test function is also available on this device.Calibrate the apparatus or modify paremeters by using a handheld programmer.
